From the Manufacturer

From the Manufacturer Brilliant quality. Blockbuster performance. - Enjoy the home theater experience in a way you never thought possible. With contrast ratio of up to 75,000:1, the highest currently available in its class*, the Epson PowerLite Home Cinema 6500 UB puts you right in the middle of where the action is, as larger–than–life images leap right off the screen. Whether you’re watching movies or sports, this 1080p projector ensures amazing image quality with the latest–generation Epson D7 chip, UltraBlack™ technology and 1600 lumens of color and white light output.* * With a state–of–the–art Fujinon lens, a brand trusted by renowned Hollywood filmmakers, this product delivers blockbuster video performance. And, with Epson’s 3LCD, 3–chip optical engine, it offers such incredible quality, you’re sure to achieve a true cinematic experience. The PowerLite Home Cinema 6500 UB brings big–screen entertainment home in a whole new way. High-definition native 1080p home theater projector with state-of-the-art features and powerful performance.


Epson's UltraBlack technology makes it possible to achieve incredibly deep blacks with minimal light leakage.
Astounding black levels deliver a stunning 1080p cinematic experience. Incredibly Deep Blacks with Crystal Clear Detail.

Achieve astounding blacks with an incredible contrast ratio of up to 75,000:1, UltraBlack technology and Epson’s exclusive Vertical Alignment (VA) LCD technology. With VA LCD technology, opaque (black) is the natural state. Signal voltage is applied to increase translucence (transmittance) as needed. This is a fundamental design and performance advantage — a complete re–thinking of LCD chip design. Conventional LCDs use Twisted Nematic chips, which are translucent in their natural state. Signal voltage is applied to reduce light throughput, but the inability to achieve correct Liquid Crystal alignment means that true black is impossible to achieve, as there will always be some leakage. VA technology is fundamentally correct, and results in true deep blacks since the molecules align uniformly with minimal stray light leakage.

The OptiCinema lens system is a precision, high–quality, optical grade system. Co-developed with Fujinon, a top supplier of precision camera optics to the world’s leading HD camera makers, this system offers excellent picture uniformity and clarity across the screen. This lens system also provides precision focus with 2.1X zoom ratio, and delivers maximum installation flexibility with 96% vertical and 47% horizontal lens shift (without image distortion).

The PowerLite Home Cinema 6500 UB brings stunning, true–to–life color to images onscreen with Epson’s exclusive Cinema Filter. This Epson–exclusive technology expands the color gamut to reproduce colors as filmmakers intended, which generates a more natural color palette and ensures a more vivid viewing experience. And the new advanced high-speed auto iris is ideal for fast-action movies and TV shows as it automatically adjusts light output up to 60 times per second. Experience smoother image quality with the new FineFrame™ interpolation processing which deconstructs and reconstructs 24 and 60 Hz sources for a 1080p frame rate output of up to 120 Hz, virtually eliminating flicker and frame–to–frame judder. Finally, with the new 200 W Ultra High Efficiency lamp, you will experience bright natural colors that pop off the screen. This E-TORL^® lamp projects light more efficiently, maximizing brightness throughout the lamp’s life of up to 4,000 hours.***

• High-definition, true, native, 1080p home theater experience — 1920 x 1080 resolution
• Large screen viewing experience — projects a 16:9 widescreen 60-inch image from only six feet away or a 120-inch image from just 12 feet away
• Deep, dark blacks, crystal clear detail — new D7 TFT panels, a contrast ratio of up to 75,000:1 with UltraBlack™ and C2Fine® technology
• Rich, vibrant color — 3-chip optical engine
• Reliable performance — 3LCD technology
• Bright, brilliant images — 1600 lumens color, 1600 lumens white light output**
• Stunning picture uniformity and clarity — HQV processor, 120 Hz FineFrame™ technology and an OptiCinema™ lens by Fujinon with 2.1 zoom ratio
• Astounding, color fidelity — Epson exclusive Cinema Filter with expanded color gamut
• Cutting-edge connectivity — two HDMI 1.3a ports for maximum flexibility
• Smooth gradations — 12-bit panel driver
• Efficient cooling system — unobtrusive fan
• Ideal for fast-action movies, TV shows — advanced, high-speed auto iris function automatically adjusts light output up to 60 times per second
• Easy maintenance — convenient dust filtration system with large surface area for greater efficiency
• Energy and cost efficient — new E-TORL^® lamp lasts up to 4000 hours***
• Outstanding support — 3-year parts and labor limited warranty; 90-day limited lamp warranty; Epson Home Service Program and Epson Private Line dedicated toll-free support (U.S. and Canada only)
• Packaging Specifications — Dimensions 23.7" x 18.1" x 11.3" (W x D x H) and Weight 22.8 lb

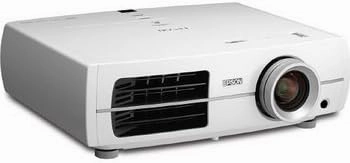

• PowerLite Home Cinema 6500 UB Projector
• Power cable
• Projector remote control
• Two batteries
• User manual

* Home theater projectors priced under $4,000

**Light output varies depending on modes (color and white light output). White light output measured using ISO 21118 standard.

***Lamp life results will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time
