- WH 1 X 16 CATV PREMIUM ACTIVE RF MOD
- Product Type: VIDEO DISTRIBUTION MODULE
- Item Package Dimension: 10.1L x 4.4W x 3.8H inches
- Item Package Weight - 2.45 Pounds
- Item Package Quantity - 1
Product Description
CATV, HDTV TYPE; 52 TO 1000 MHZ (FORWARD PATH), 0 TO 45 MHZ (REVERSE PATH) FREQUENCY RATING; 16 WAY(S); STRUCTURED MEDIA[R] BRAND; INCLUDES GOLD PLATED CONNECTOR, POWER SUPPLY; IMPEDANCE 75 OHM; COLOR WHITE
Amazon.com

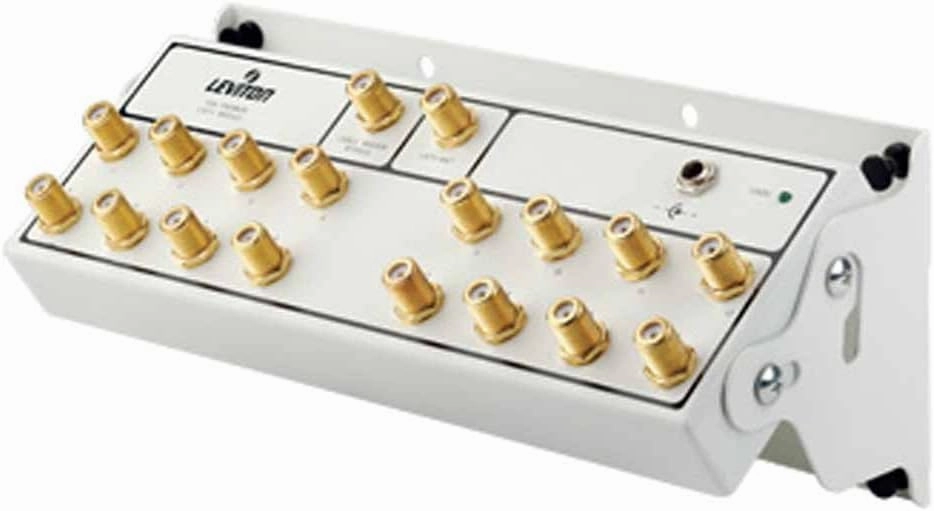

Leviton’s Premium 1x16 CATV Modules distribute incoming RF signals (cable TV, HDTV, antenna or other modulated sources) to up to sixteen locations anywhere in a home or office on coaxial cable. The modules incorporate cutting-edge bi-directional signaling to support advanced interactive communications via a cable modem or cable box. The premium line has been designed to handle the strains of current and emerging advanced technologies (such as HDTV) offered by cable operators by optimizing the performance of digital cable signals. These modules also work with standard CATV, antenna and modulated input from such sources as VCRs, DVDs and security cameras/CCTVs.
Premium 1x16 CATV Module
At a Glance:
- Digital CATV and HDTV compatible
- Bi-directional signal path supports cable modem communications
- Distributes signals to up to 16 locations
- Unity gain (input level is available at all output ports) means no need for adjustment
- Machine-threaded, gold-plated brass ports for optimal signal
- Passive cable modem bypass retains VOIP functionality during power outages
Engineered with all of the demanding applications of modern homes and offices in mind, this module is compatible with the latest digital cable and high definition TV signals. The bi-directional signal path enables communication with cable modems and cable boxes. In the event of a power outage, the passive cable modem bypass port allows users to retain VOIP functionality. Strong gold-plated brass ports ensure the highest quality connections, and the forward path utilizes a high quality unity gain amplifier design.
Easy Installation
This versatile unit can tilt to accommodate a number of tight installation spaces–just adjust the angle of the unit to fit your needs. For further convenience, the design allows for a completely hassle-free installation into Leviton’s structured media enclosures, which serve as a central hub for all your home or office media needs. Simply align push-lock pins (not included) with the grid holes in the structured media enclosure to install the module in the desired location and orientation. The unit can be mounted either horizontally or vertically, providing further installation versatility. And like all Leviton products, the Premium CATV Module is built to last (it is enclosed in robust aluminum die-cast housing with white powder coating) and backed by a two year limited warranty.
What's in the Box
One Leviton premium 1x16 CATV module, termination caps for unused outputs, one small-sized power adapter.
The 1x16 CATV module distributes incoming signals to up to sixteen locations
and supports advanced communication via cable modems and cable boxes (click each to enlarge)
From the Manufacturer
Leviton's Premium CATV Modules are designed to distribute incoming RF signals (Cable TV, HDTV, Antenna or other modulated sources) to 1, 8 or 16 locations throughout a home or office on coaxial cable. The modules incorporate state-of-the-art bi-directional signaling to support advanced interactive communications via a cable modem or cable box as well as standard CATV, antenna and modulated input from such sources as VCRs, DVDs and security camera/CCTVs. The Premium Line optimizes the performance of digital cable signals to handle advanced technologies offered by cable operators, including delivery of HDTV.
